Poppet valves
Revolutions per minute
up to 750 RPM
Discharge temperature
up to 230° С
Cylinder pressure
up to 40MPa
Universal and effective

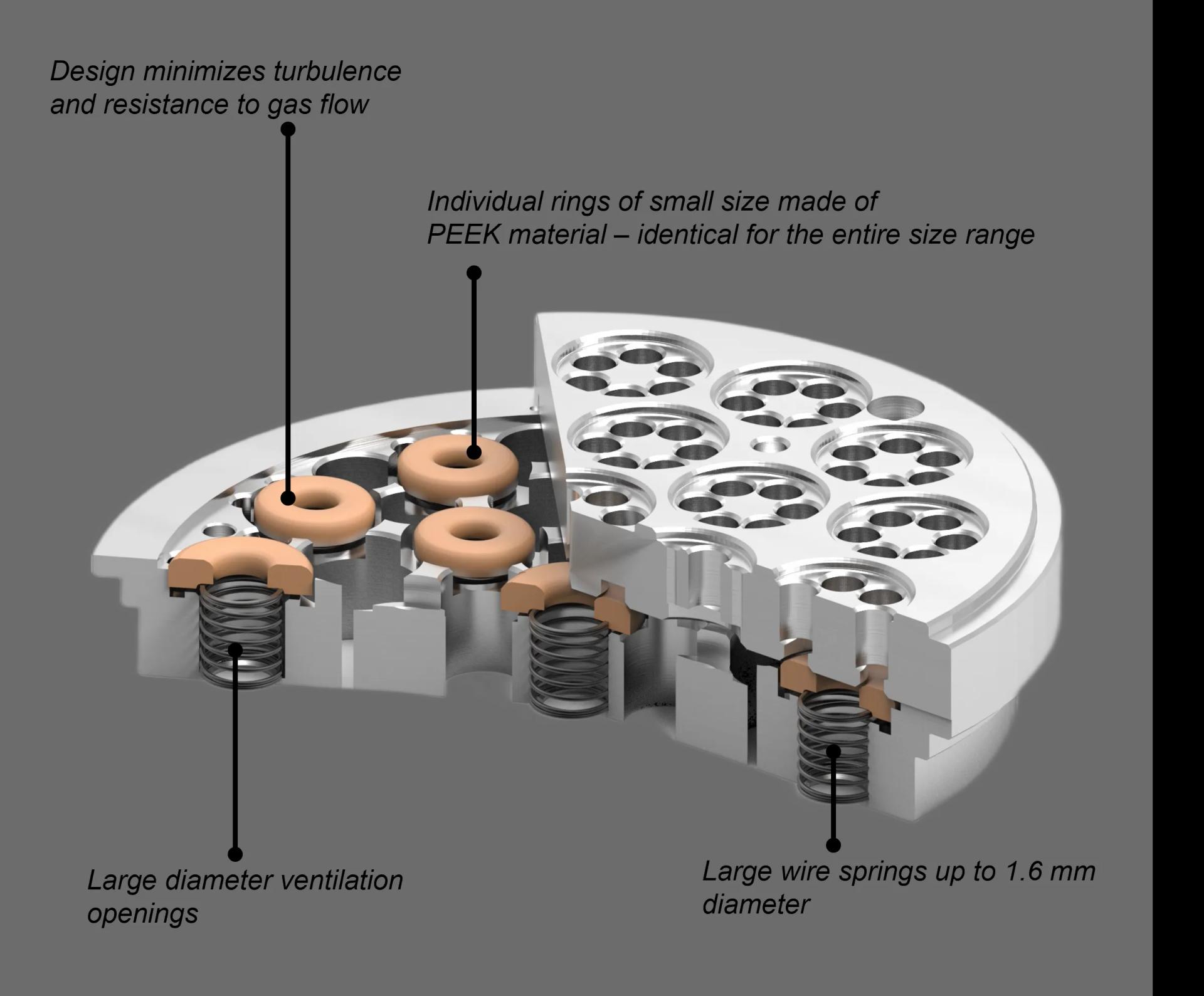

- Optimal performance and ultimate service life are achieved through a high lift height provided by rings’ compact size, light weight, hemispherical crosssections
- Extended maintenance free operation is ensured by large wire springs up to 1.6 mm in diameter
- Large diameter ventilation holes prevent coke formation
[ 01 ]

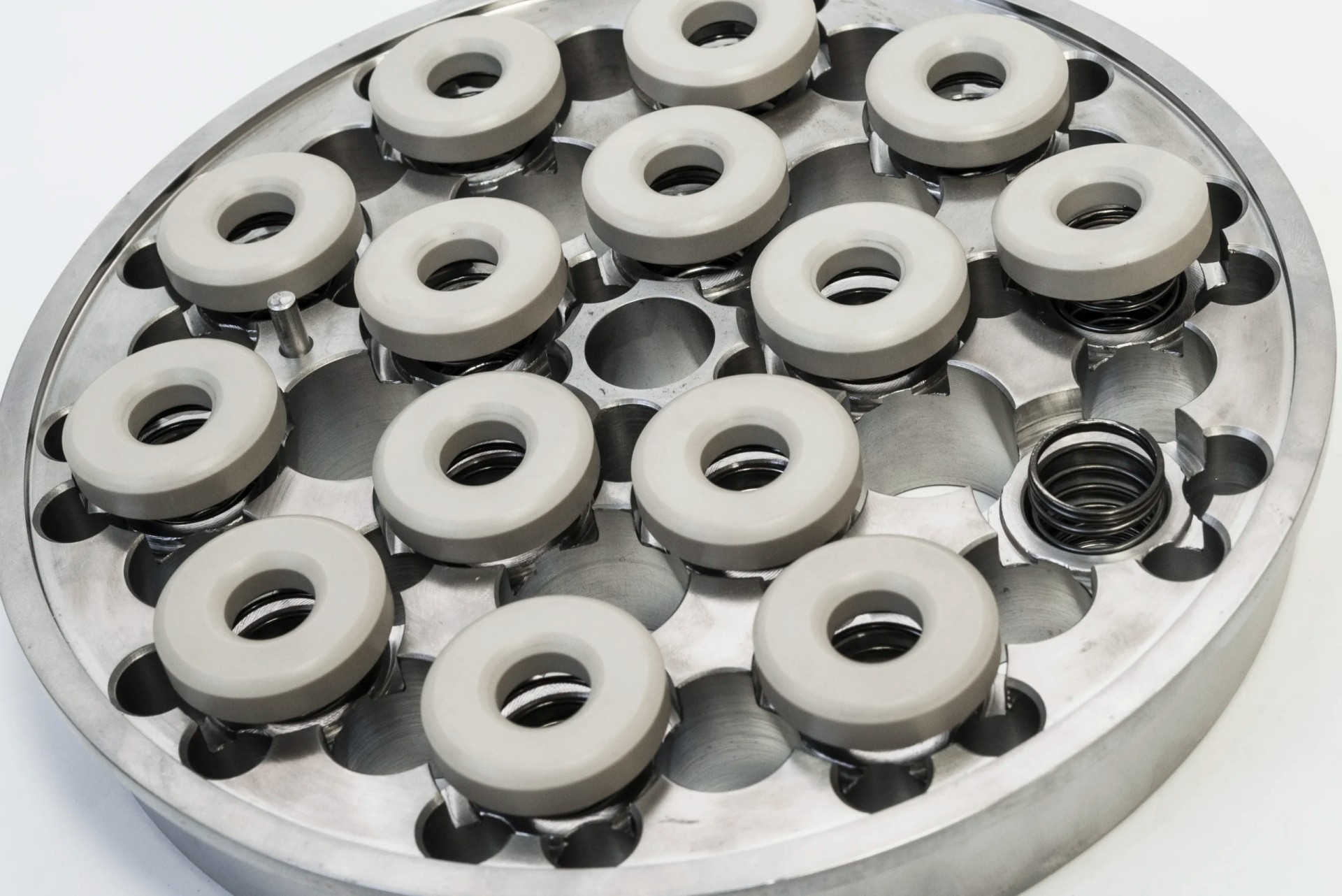

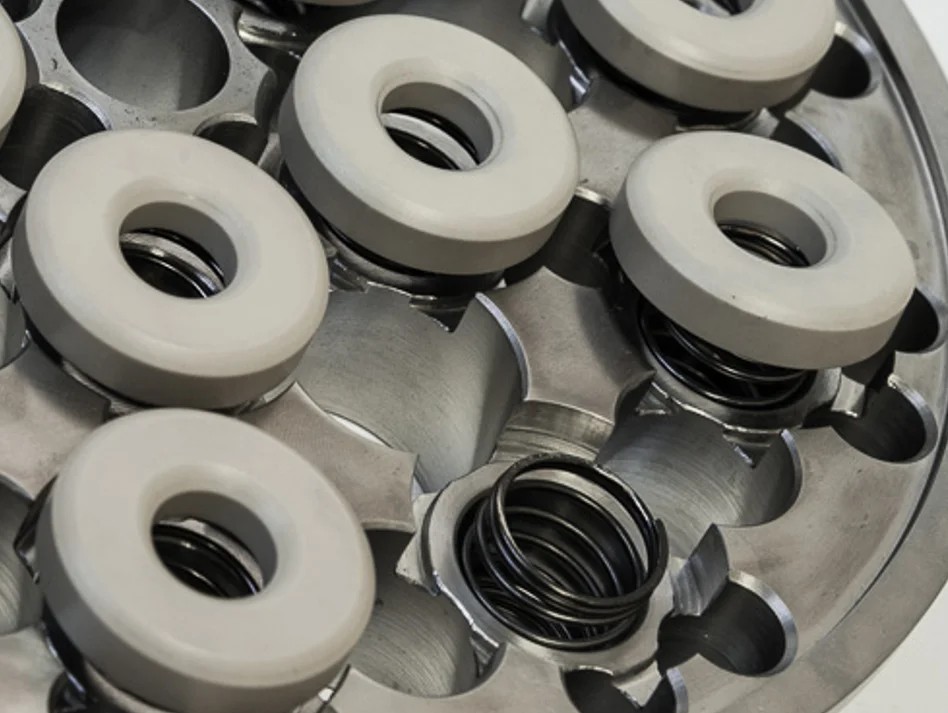

High-Strength PEEK Polymers
for critical valve components
[ 02 ]
[ 03 ]
[ 04 ]
DLC-coatings
of springs and seats for high unit life
[ 05 ]
[ 06 ]
[ 07 ]
Stock unification –
components are designed for compatibility with different valves and compressors
